C-20 2K SINGLE COAT ANTICORROSION UHS SYSTEM
General Information
DIRECT SYSTEM
CORROSIVITY: C3 | MEDIUM
CORROSIVITY: C3 | MEDIUM
| Support type | Surface pretreatment |
|---|---|
| Steel | Degreased |
| Shotblasted steel | Brushed |
| Iron | Sand-Blasting |
¿Quieres obtener más información?
ENVIAR CONSULTADESCRIPTION AND FEATURES
Ultra High Solid System for painting machinery, Tanks, Commercial Vehicles, etc. with low and high pressure equipments. Excellent elasticity, body, and antirust protection without a primer.
This system is compliant with the current legislation in the European Directive 2004/42/CE for Car Refinish. Also used as an alternative to conventional processes for the reduction of VOC emissions, in order to help fulfill the Directive 1999/13/CE .
RESISTANCE AND CERTIFICATES
240 H SALT SPRAY TEST

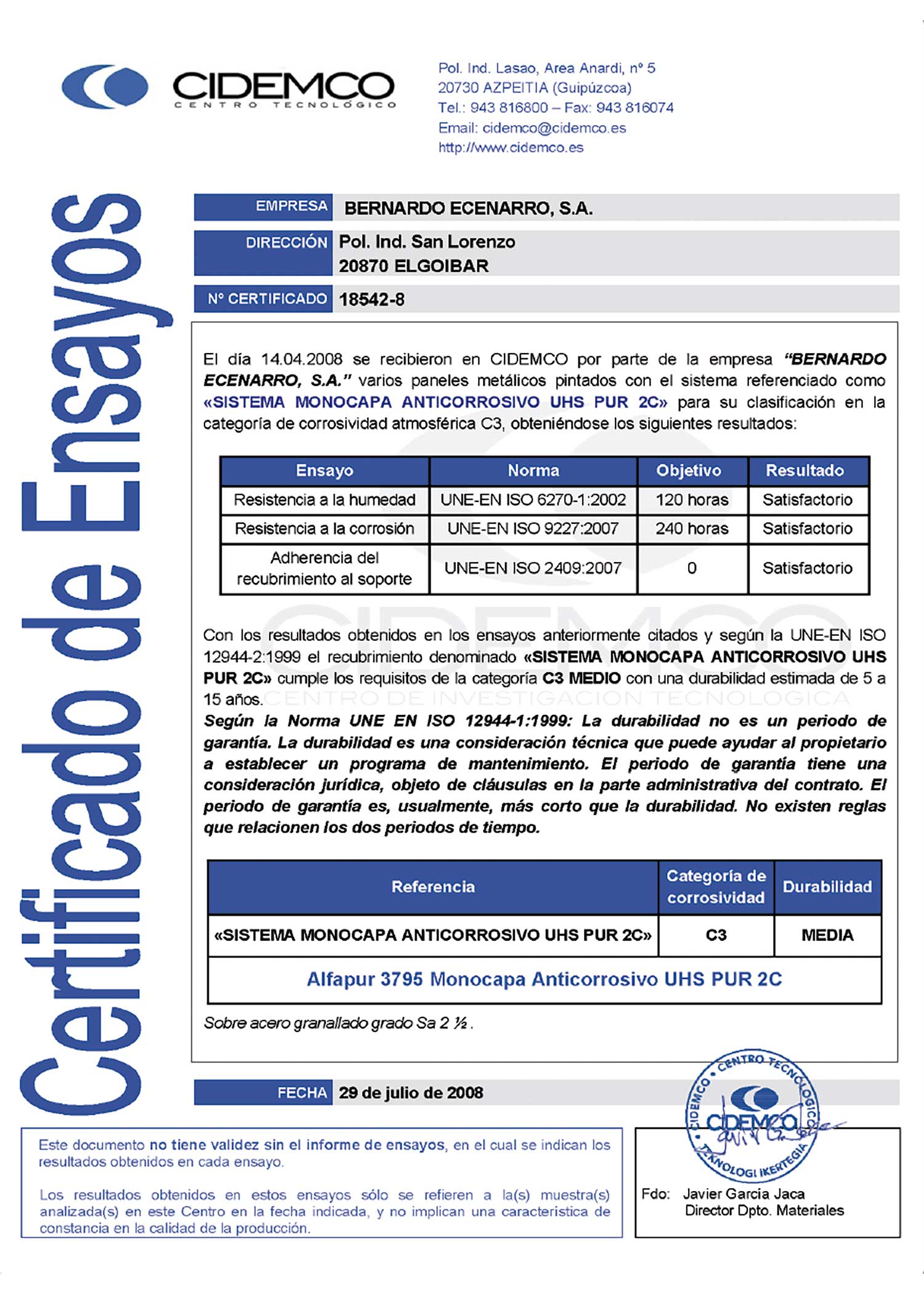

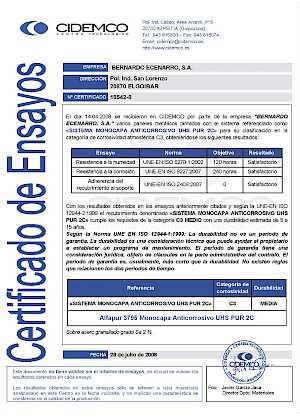

An independent approved Laboratory certifies that meets the requirements for category C3 Medium in accordance to ISO 12944-2 (Shotblasted Steel Sa 2½).
120 H HUMIDITY TEST
PRODUCTS
ALFAPUR 3795
2K DTM UHS Anticorrosion PUR Enamel
| Physical properties | |
|---|---|
| Type of product | Polyester Polyurethane-Zinc Phosphate |
| Density 20 °C | 1,16 - 1,42 |
| Supply viscosity at 20 °C | 70 - 75 KU (Stormer) |
| Solid Content (% weight) | 59 - 67% (mixed with hardener) |
| Solid Content (% volume) | 47 - 50% (mixed with hardener) |
| V.O.C. | 420 g/l (ready to use) |
| Color | s/m URKI-SYSTEM |
| Features of dry film | |
|---|---|
| Theoretical yield | 6 - 7 m² / l. (80 my) |
| Gloss 60 - 60° | > 85% |
| Recoatability | 3 h. after cabin drying. |
IMPLEMENTATION PROCESS
SURFACE PREPARATION
STEEL AND GALVANIZED
The surfaces should be thoroughly degreased and deoxidized or shotblasted.
APPLICATION
ALFAPUR 3795
E-135 4:1 weight
>2 h.
45-55" Airless 25-30" Spraygun
URKISOL 8229 / 3700 25-30 % Ø 1,4-1,6 mm
80-100 my
Non Sticky. 4 -5 h.
15-30' 70 °C/30' (In cabin)
URKISOL 8229 / 3700 3-7% 0,013-0,015"
URKISOL 8229 / 3700 3-7% 0,013-0,015"
